JZP-C Series
JZP is mainly composed of springs, shock-absorbing pads and other materials, which seems to be an ordinary combination but contains strong vibration isolation and noise reduction capabilities. Like a skilled craftsman, it can be designed and installed according to different needs, and is used in a wide range of fields such as machinery, building structures, bridges and railway tracks.
Bridges are a critical link in the transportation network, and vibrations caused by factors such as vehicle movement and wind force continue to erode the health of bridges. The application of JZP is like injecting a shot in the arm for the bridge. It reduces the impact of these vibrations on the bridge, allowing the bridge to carry the heavy lifting of traffic for a longer period of time. This not only prolongs the service life of the bridge, but also makes the vehicle drive more smoothly on the bridge from the perspective of driving safety, reducing the accidents that may be caused by bridge vibration.
In railway transportation, JZP also plays a role that cannot be ignored. The vibration and noise generated by the train at high speed on the track will affect the smooth operation of the train and the comfort of passengers. JZP is like a gentle guardian of railway tracks and rolling stock, which reduces the vibration and noise of the train when it is moving, so that the train can run more smoothly on the tracks. Passengers sit in the carriage and feel quiet and comfortable, not annoying vibrations and noise.
With its unique advantages and wide range of application scenarios, prefabricated vibration isolators (JZP) play an irreplaceable role in the field of modern engineering, and contribute to creating a more stable, comfortable and safe production and living environment.
Technical parameters
| Technical Parameter |
JZP-0.3C |
JZP-0.5C |
JZP-0.8C |
JZP-1.0C |
JZP-1.2C |
JZP-1.5C |
JZP-1.8C |
JZP-2.0C |
JZP-2.5C |
JZP-3.0C |
| Pz Nominal Load (Kg) |
0.3 |
0.5 |
0.8 |
1.0 |
1.2 |
1.5 |
1.8 |
2.0 |
2.5 |
3.0 |
| Deflection |
Downward Pressure |
| Deformation Displacement(mm) |
≤0.3 |
| Resonant Frequency(Hz) |
35±3 |
| Working Temperature(℃) |
-45～+65 |

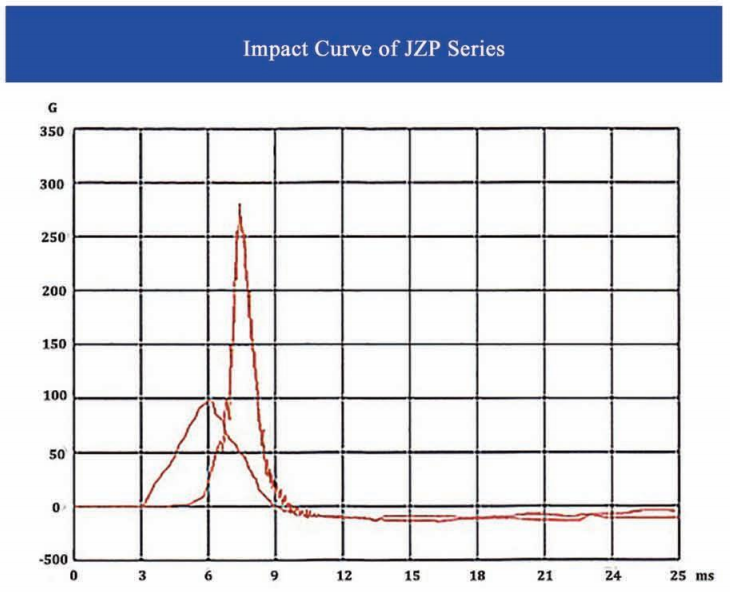

| Shock(Ks) |
100g/6ms |
| Peak Response(G) |
≤3.6km/s2 |
| Vibration(Kv) |
Accord with National Military Standard GJB150-16 |
* Unique Characteristics of Xi'an Hoan's Vibration Isolators *
* No creep or ageing.
* High internal damping.
* Very wide temperature range.
* Wide variety of possible fittings.
* Rapid and economical prototyping.
* Extremely rugged construction and long lifespan.
* Excellent combined shock and vibration isolation.
* Not affected by chemical agents, seawater, ozone, UV rays
